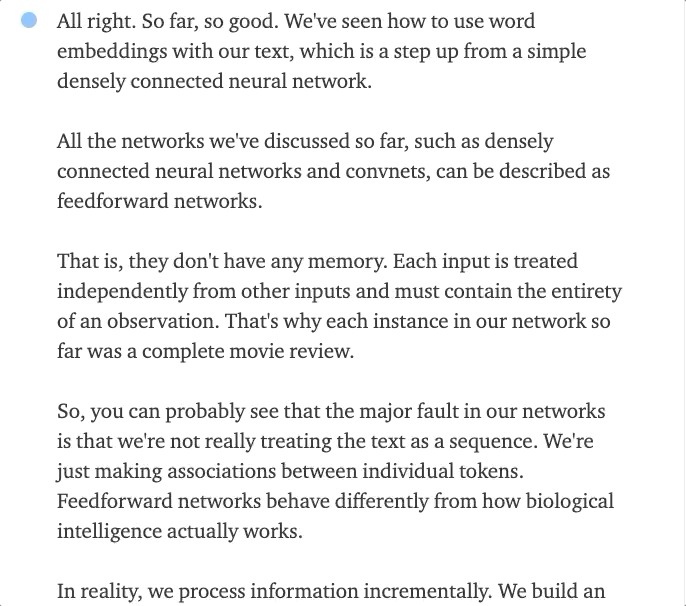

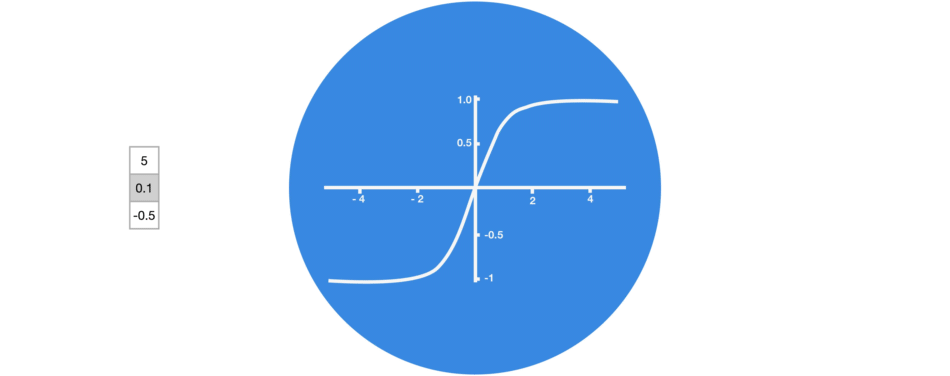

class: center, middle, inverse, title-slide # Recurrent Networks ### Brad Boehmke ### 2020-01-27 --- # Text is a sequence of information .pull-left[ ![](images/sequential-text.gif)<!-- --> ] -- .pull-right[ Sometimes our context is nearby: _.center[I grew up in .blue[France] and speak .red[French]]_ <br> Sometimes we need distant context: _.center[My father worked for the .blue[French] retailer .blue[Carrefour] and I grew up in a little village called .blue[La Roque-Gageac], which is on the north bank of the .blue[Dordogne River]. Consequently, I learned to speak .red[French]]_ ] --- # RNNs .font120[RNNs are just a looping mechanism that allows us to retain information from previous states.] -- .center[We typically see images such as this to represent RNNs:] <img src="https://cdn-images-1.medium.com/max/1600/1*T_ECcHZWpjn0Ki4_4BEzow.gif" style="display: block; margin: auto;" /> .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # RNNs .font120[RNNs are just a looping mechanism that allows us to retain information from previous states.] .center[But if we unroll this layer, its just a multi-layer perceptron:] <img src="https://miro.medium.com/max/1400/1*AQ52bwW55GsJt6HTxPDuMA.gif" style="display: block; margin: auto;" /> .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # Hidden state .pull-left[ This passing of information from previous states is what we call the .blue[___hidden state___]. It is common for the hidden state to be analogized to .blue[memory]. ] .pull-right[ ![](https://miro.medium.com/max/1400/1*o-Cq5U8-tfa1_ve2Pf3nfg.gif)<!-- --> ] .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # Hidden state .pull-left[ 1. The previous hidden state and the current state input are combined to form a vector. That vector now has information on the current input and previous inputs. 2. The vector goes through the __tanh__ activation, 3. The output is the new hidden state, or the memory of the network. ] .pull-right[ <img src="https://miro.medium.com/max/1400/1*WMnFSJHzOloFlJHU6fVN-g.gif" width="110%" /> ] .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # Tanh activation .pull-left[ The .blue[__tanh__] activation helps to keep values between -1 and 1. ] .pull-right[ ![](https://miro.medium.com/max/1400/1*iRlEg1GBKRzGTre5aOQUCg.gif)<!-- --> ] .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # Weights .pull-left[ The .blue[weights] of the network will determine what parts of the sequence to emphasize (aka .blue[_remember_]) to accurately predict what comes next. <br> .center[.opacity20[My father worked for the] .blue[French] .opacity20[retailer] .blue[Carrefour] .opacity20[and I grew up in a little village called] .blue[La Roque-Gageac], .opacity20[which is on the north bank of the] .blue[Dordogne River]. .opacity20[Consequently, I learned to speak] .red[French]] ] .pull-right[ <br><br><br><br><br> ![](https://colah.github.io/posts/2015-08-Understanding-LSTMs/img/RNN-longtermdependencies.png)<!-- --> ] .footnote[Image: [Christopher Olah](https://colah.github.io/)] --- # Multiple units .pull-left[ The number of units we specify in a recurrent layer is analogous to [feature maps](https://rstudio-conf-2020.github.io/dl-keras-tf/04-computer-vision-cnns.html#18) in CNNs. * Each unit will be a full sequence of RNN cells * Each unit will have its own weight matrix * Results in different features of the sequence to be emphasized ] .pull-right[ <img src="images/rnn-feature-maps.png" width="960" /> ] --- # Vanishing gradient .pull-left.font90[ * When doing back propagation, each node in a layer calculates its gradient with respect to the effects of the gradients in the layer before it. * If the adjustments to the layers before it is small, then adjustments to the current layer will be even smaller. * This causes gradients to ___exponentially shrink___ as they back propagate * Small gradients mean small adjustments, which causes the early layers not to learn. .center.red[___RNNs can't learn long-range dependencies!___] ] .pull-right[ <br><br><br> ![](https://cdn-images-1.medium.com/max/1600/1*Ku54qmCryZVBaIc6g8rjGA.gif)<!-- --> ] .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # LSTMs .font120[Similar in nature to RNNs but have additional features to help fight the short-term memory issue of RNNs.] --- # LSTMs 😱 .font120[Similar in nature to RNNs but have additional features to help fight the short-term memory issue of RNNs.] <img src="https://miro.medium.com/max/1400/1*0f8r3Vd-i4ueYND1CUrhMA.png" width="60%" height="60%" style="display: block; margin: auto;" /> .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # Forget gate .pull-left[ * Information from the previous hidden state and information from the current input is passed through the sigmoid activation function. * Values come out between 0 and 1 - closer to 0 means to forget - closer to 1 means to remember <br> .center.bold[Decides what information should be thrown away or kept] ] .pull-right[ ![](https://miro.medium.com/max/1400/1*GjehOa513_BgpDDP6Vkw2Q.gif)<!-- --> ] .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # Input gate .pull-left[ * Step 1: - `sigmoid(hidden state + current input)` - decides which values we’ll update * Step 2: - `tahn(hidden state + current input)` - creates vector of new candidate info to be added to the state * Step 3: - `Step 1 output x Step 2 output` .center.bold[Decides what new information we’re going to store in the cell state] ] .pull-right[ ![](https://miro.medium.com/max/1400/1*TTmYy7Sy8uUXxUXfzmoKbA.gif)<!-- --> ] .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # Cell state .pull-left[ * Use outputs of previous gates to update current cell state * The cell state gets pointwise multiplied by the forget vector. This has a possibility of dropping values in the cell state if it gets multiplied by values near 0. * Then we take the output from the input gate and do a pointwise addition which updates the cell state to new values that the neural network finds relevant. ] .pull-right[ ![](https://miro.medium.com/max/1400/1*S0rXIeO_VoUVOyrYHckUWg.gif)<!-- --> ] .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # Output gate .pull-left[ * Step 1: - `sigmoid(hidden state + current input)` - decides how to filter our current cell state * Step 2: - `tahn(hidden state + current input)` - regulates our current cell state values * Step 3: - `Step 1 output x Step 2 output` .center.bold[Decides what new information to pass along as our hidden state] ] .pull-right[ ![](https://miro.medium.com/max/1400/1*VOXRGhOShoWWks6ouoDN3Q.gif)<!-- --> ] .footnote[Image: [Michael Phi](http://www.kurious.pub/)] --- # Computational complexity <img src="images/still_waiting.jpeg" width="35%" height="35%" style="display: block; margin: auto;" /> --- # Variants Many variants exists... * Learning to forget [
<i class="ai ai-google-scholar faa-tada animated-hover "></i>
](https://scholar.google.com/scholar?hl=en&as_sdt=0%2C47&q=Recurrent+nets+that+time+and+count&btnG=) * Gate recurrent unit [
<i class="ai ai-google-scholar faa-tada animated-hover "></i>
](https://arxiv.org/abs/1406.1078) * Depth gated RNNs [
<i class="ai ai-google-scholar faa-tada animated-hover "></i>
](https://arxiv.org/pdf/1508.03790v2.pdf) * Clockwork RNNs [
<i class="ai ai-google-scholar faa-tada animated-hover "></i>
](https://arxiv.org/pdf/1402.3511v1.pdf) * Which is best? .bold[Depends...] - [Greff, et al. (2015)](http://arxiv.org/pdf/1503.04069.pdf) - [Jozefowicz, et al. (2015)](http://jmlr.org/proceedings/papers/v37/jozefowicz15.pdf) --- # Learn more - [Colah's blog](https://colah.github.io/) - [Michael Phi's "Illustrated" blog](http://www.kurious.pub/) --- # Back home <br><br><br><br> [.center[
